6310 NAC

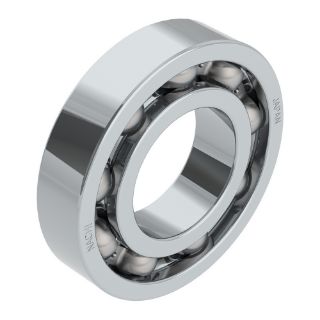

Picture of 6310 NAC
Actual Product May Vary From Image

Product Details

Manufacturer:
Nachi Bearings
Manufacturer part number:
6310C3
product.name:
6310 NAC
CBT Inventory
6
Vendor Inventory
Loading...
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

NACHI

Description

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
NACHI Deep Groove Ball Bearing, Series: 6300, 50 mm Bore, 110 mm OD, 1 Row, 27 mm Width, Open Closure, 62000 N Dynamic/38000 N Static Load, Steel Bearing, Stamped Steel Cage, 6400 rpm Grease/7500 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

  • Excellent high speed capability
  • Good radial load capacity
  • Good axial load capacity in both directions
  • Low torque requirements during startup and operation
  • Low noise
  • Little/no maintenance required
  • Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
  • Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
  • Internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:50 mm
Cage Material:Stamped Steel
Closure Type:Open
Country of Origin:JP
Load Capacity:62000 N Dynamic/38000 N Static
Maximum Speed:6400 rpm Grease/7500 rpm Oil
Number of Rows:1
Outside Diameter:110 mm
Series:6300
Temperature Rating:250 deg F
Width:27 mm

Products Specifications

Bore Size
50 mm
Brand Name
Nachi
Measuring Units
Metric
Outside Diameter
110 mm
Width
27 mm
