63-28-310-8 SHD

Name: 63-28-310-8 SHD
Brand: SolaHD (Emerson)
SKU: 63-28-310-8 SHD
Availability: InStock

63-28-310-8 SHD

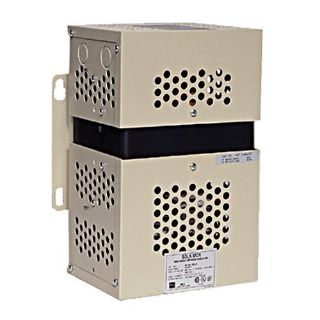

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

63-28-310-8

product.name:

63-28-310-8 SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

SBE Open Style, Copper Wound

Description

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:10000VA, Input Voltage: 208/240/480, Output Voltage: 120/208/240

Application

Best choice when 80% or more of the load components are electromagnetic

Standards

UL Listed: E77014, UL 506; CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant

Features

High Quality Silicon Steel Core, Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC.

Specifications

Connection:	Terminals
Country of Origin:	US
Frequency Rating:	50/60 Hz
Height:	8 in
Input:	208, 240, 480
Input Voltage:	243 x 480 Volt Primary, 230 x 460 Volt Primary, 220 x 440 Volt Primary VAC
Insulation:	105 DEG C Insulation System
Length:	12 in
Mounting:	Mtg Width 8.00, Mtg Depth 8.75, Slot Size .44 x .69
Noise Level:	35 to 65
Output Power:	120/208/240
Output Voltage:	120, 115, 110 VAC
Style:	2
Temperature Rating:	55 DEG C Temperature Rise Under Full Load
Wattage:	5 kVA
Width:	9 in

Resources

MSDS Spec Sheet Warranty
