5204 2NSL NAC

Name: 5204 2NSL NAC
Brand: Nachi Bearings
SKU: 5204 2NSL NAC
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Nachi Bearings

Manufacturer part number:

5204-2NS

product.name:

5204 2NSL NAC

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

NACHI

Description

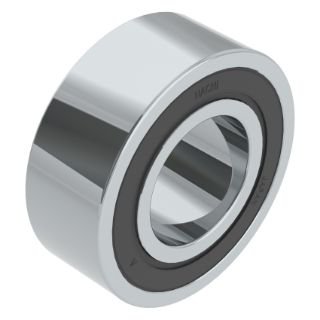

A double-row angular contact ball bearing is basically two single-row angular contact ball bearings with 20 deg contact angles, mounted back-to-back while contained within a narrower single bearing. These bearings occupy less axial space and can take a bi-directional axial, radial and moment loads in one bearing where it takes a matched pair otherwise.

NACHI Angular Contact Ball Bearing, Series: 5200, 20 mm Bore, 47 mm OD, 2 Rows, 20.6 mm Width, 20 deg Contact Angle, Double Seal Closure, 20000 N Dynamic/12700 N Static Load, Pressed Steel Cage, 10000 rpm Grease/14000 rpm Oil Maximum

Application

Blower, High Speed Vacuum Pump, Super Charger and Motor Cycle Transmission

Features

More economical than two matched single-row angular contact bearings
Single bearing yields handling and mounting benefits
More compact than two single-row bearings
Support radial and axial loads in either direction
Capable of some moment load
Sealed bearings are maintenance-free
Low noise
Energy efficient
Cost effective
Reduced friction
Long life

Specifications

Bore Diameter:	20 mm
Cage Material:	Pressed Steel
Closure Type:	Double Seal
Contact Angle:	20 deg
Country of Origin:	JP
Load Capacity:	20000 N Dynamic/12700 N Static
Maximum Speed:	10000 rpm Grease/14000 rpm Oil
Number of Rows:	2
Outside Diameter:	47 mm
Series:	5200
Width:	20.6 mm
