51106 BLT

Product Details

Manufacturer:
Manufacturer part number:
51106
product.name:
51106 BLT
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

NACHI

Description

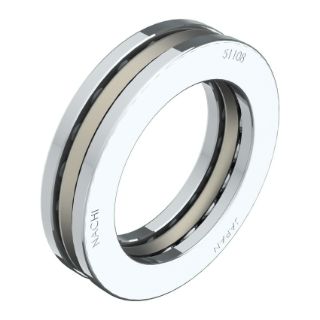

NACHI Thrust Ball Bearing, Series: 51100, 30 mm Bore, 47 mm OD, 11 mm Width, Flat Back Face, Single Thrust Direction, 20400 N Dynamic/42000 N Static Load, 4300 rpm Grease/6500 rpm Oil Maximum

Application

Crane Hooks and Other Machine Applications

Features

  • Thrust ball bearings are designed to handle axial loads only
  • Thrust ball bearings consist of ball, retainer, both shaft and housing washers which contain grooves for the balls and can be subject to axial load only
  • The bearings with spherical housing washer can prevent static misalignment

Specifications

Bore Diameter:30 mm
Country of Origin:JP
Face Type:Flat Back
Load Capacity:20400 N Dynamic/42000 N Static
Maximum Speed:4300 rpm Grease/6500 rpm Oil
Outside Diameter:47 mm
Series:51100
Thrust Direction:Single
Width:11 mm
