50BTB20H MSG

Name: 50BTB20H MSG
Brand: Martin Sprocket & Gear
SKU: 50BTB20H MSG
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

50BTB20H

product.name:

50BTB20H MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

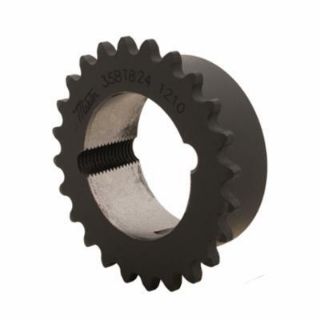

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 4.321 in Outside Dia, #50 Chain, 20 Teeth, 5/8 in Pitch, 3.995 in, 3-1/4 in Hub Dia, 1 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	1610 Taper Lock
Chain Size:	#50
Country of Origin:	US
Hub Diameter:	3-1/4 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	20
Outside Diameter:	4.321 in
Pitch:	5/8 in
Pitch Diameter:	3.995 in
