.5036OS3EJPR56C-S WEG

Name: .5036OS3EJPR56C-S WEG
Brand: WEG
SKU: .5036OS3EJPR56C-S WEG
Availability: OutOfStock

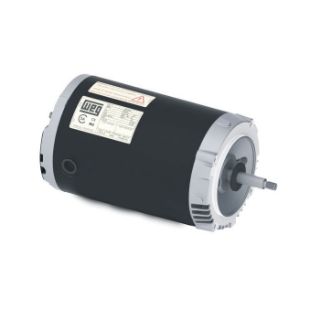

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

.5036OS3EJPR56C-S

product.name:

.5036OS3EJPR56C-S WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110950672

Description

These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.

WEG AC Motor, Continuous-Duty, Jet Pump (JM/JP) Motors Application, 0.5 hp, 208/230/460 VAC, 1.98 to 1.79/0.897 A, 60 Hz Frequency, 3 ph ph, 3495 rpm Speed, Open Drip-Proof Enclosure, 56C Frame, CCW Rotation, 1.6 Service Factor, Ball Bearing, 0.741 ft-lb Torque, Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 10.315 in L Dimensions

Application

Jet Pump Applications

Standards

NEMA MG-1

Features

NEMA service factor
Automatic reset thermal overload protection
Stainless steel shaft end

Specifications

Amperage Rating:	1.98 to 1.79/0.897 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Dimensions:	10.315 in L
Enclosure Type:	Open Drip-Proof
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footless
Phase:	3 ph
Rotation:	CCW
Service Factor:	1.6
Speed:	3495 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	0.741 ft-lb
Voltage Rating:	208/230/460 VAC
