.5018ES1RADB56N WEG

Name: .5018ES1RADB56N WEG
Brand: WEG
SKU: .5018ES1RADB56N WEG
Availability: OutOfStock

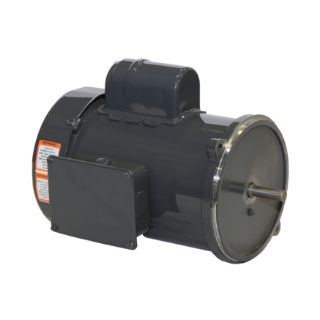

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

.5018ES1RADB56N

product.name:

.5018ES1RADB56N WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101390501
Motion Industries - 04205669

Description

WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators.

WEG AC Motor, Auger Drive Motors, Farm Duty Motors Application, 0.5 hp, 115/230 VAC, 3.7 A, 60 Hz Frequency, 1 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, B56N Frame, 0.625 in Dia x 1.88 in L Shaft, 1.15 Service Factor, Ball Bearing, 1.48 ft-lb Torque, Footless Mounting, 40 deg C, Insulation Class: Class B, Steel, 12.76 in L Dimensions

Standards

NEMA MG-1

Features

Double shielded ball bearings
Two bolts mounting NEMA 'N' flange
Extended shaft (NDE) with wrench flat for manual jogging of auger
Centrifugal start switch protected against auger drive overspeed
Manual reset thermal overload protection

Specifications

Amperage Rating:	3.7 A
Application Type:	Auger Drive Motors, Farm Duty Motors
Bearing Type:	Ball
Dimensions:	12.76 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	B56N
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Footless
Phase:	1 ph
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 1.88 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	1.48 ft-lb
Voltage Rating:	115/230 VAC
