.5018EP3ESS56CFL WEG

Name: .5018EP3ESS56CFL WEG
Brand: WEG
SKU: .5018EP3ESS56CFL WEG
Availability: OutOfStock

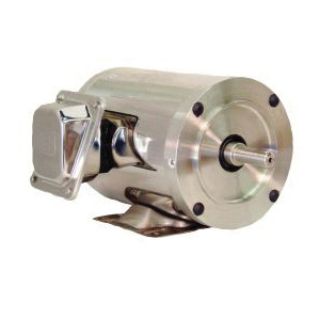

WEG .5018EP3ESS56CFL C-Face High Efficiency AC Motor, Totally Enclosed Fan Cooled Enclosure, 1/2 hp, 208 to 230/460 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Footless Mount

Manufacturer: WEG

Manufacturer part number: .5018EP3ESS56CFL

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

C-Face High Efficiency

Alternate Supplier #

Applied Industrial Technologies - 101814172
Motion Industries - 02978829

Description

WEG AC Motor, C-Face High Efficiency, 1/2 hp, 208 to 230/460 VAC, 0.73 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia x 3-1/2 in L Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 0.251 Constant Torque Speed, 0.417 ft-lb Variable Torque Speed, 11.26 in L x 8.73 in W x 6.7 in H Dimensions

Application

For food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns

Standards

CE Marked | CSA Certified | UL Listed

Features

Motors are suitable for VFD operation (TEFC)
TEFC rated IP55 (gasketed conduit box and capacitor cover)

Specifications

Amperage Rating:	0.73 A
Bearing Type:	Ball
Constant Torque Speed Range:	0.251
Dimensions:	11.26 in L x 8.73 in W x 6.7 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1/2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Footless
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia x 3-1/2 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Variable Torque Speed Range:	0.417 ft-lb
Voltage Rating:	208 to 230/460 VAC
