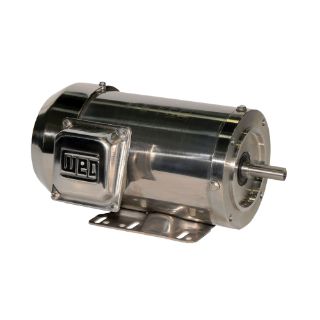

Actual Product May Vary From Image

.5018EP3ESS56C WEG

Name: .5018EP3ESS56C WEG
Brand: WEG
SKU: .5018EP3ESS56C WEG
Availability: OutOfStock

WEG Shark™ .5018EP3ESS56C AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1800 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: .5018EP3ESS56C

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 102051447
Motion Industries - 02453810

Description

WEG Shark™ AC Motor, General Purpose AC Motors Application, Washdown Duty Motors Special Features, 0.5 hp, 230/460 VAC, 0.73 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.625 in Dia x 2.06 in L Shaft, 1.15 Service Factor, Ball Bearing, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 11-1/4 in L Dimensions

Application

Food Processing, Pharmaceutical and Other Applications

Standards

NEMA PremiumÂ®

Features

Washdown Duty Motors

Specifications

Amperage Rating:	0.73 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	11-1/4 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 VAC
