443030A10M020 WOO

Name: 443030A10M020 WOO
Brand: Molex/Woodhead
SKU: 443030A10M020 WOO
Availability: OutOfStock

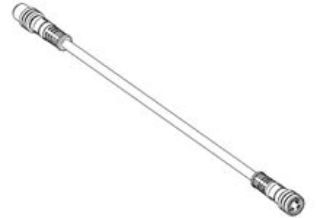

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

443030A10M020

product.name:

443030A10M020 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

Double Ended

Description

Nano-Change® (M8) industry standard connectors are rugged, space-saving, sealed connectors for miniature sensors and actuators in industrial control applications. Nano-Change® connectors are design to withstand harsh-industrial and weather environments. These connectors are used to interconnect miniature sensors and actuators found in industrial control applications.

Brad® Nano-Change® Woodhead® Cordset, Double Ended, Series: 120087, Straight Female x Straight Male Connector, M8 Connector, TPE Connector, 24 AWG Cable, 2 m Cable Length, PVC Cable, 3 Pole, A-Coded Keyway, 60 VAC/75 VDC, 4 A

Application

For class 2 control, power and network circuits

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661

Features

Gold plating mating, copper alloy contact material, TPE body material, nickel plated brass coupling nut
General M8 design meets IEC specifications industry standard interface compatible with a wide array of miniature sensors and actuators
Industry standard interface compatible with a wide array of miniature sensors and actuators
Waterproof design to withstand harsh-industrial environments
Prevents back-out in high vibration applications

Specifications

Amperage Rating:	4 A
Cable Length:	2 m
Cable Material:	PVC
Cable Type:	24 AWG
Connector Material:	TPE
Connector Size:	M8
Connector Type:	Straight Female x Straight Male
Country of Origin:	MX
Keyway:	A-Coded
Number of Poles:	3
Series:	120087
Voltage Rating:	60 VAC/75 VDC
