413H45A0 THO

Name: 413H45A0 THO
Brand: Thomson Industries
SKU: 413H45A0 THO
Availability: OutOfStock

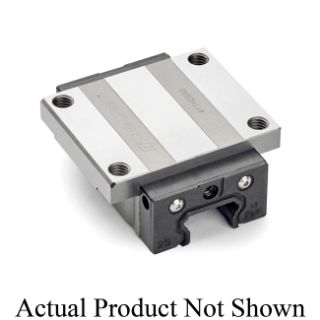

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

413H45A0

product.name:

413H45A0 THO

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Description

Thomson® Ball Cage Carriage, Series: 400, Standard Block Style, 45 mm W Rail, 120 mm Width, 51.1 mm Height, 129 mm Length, 60 mm Slide Height, M12 Carriage Hole, For Use With: 400 Series Profile Rails, 58000 N Dynamic/108900 N Static Load, 5 m/s Maximum, Alloy Steel Carriage, 80 deg C

Standards

RoHS Compliant

Features

Polymer ball-return tube reduces noise and vibration while retaining lubrication
Double-faced ball tracks utilize a 45 deg face-to-face bearing arrangement, resulting in equal load-carrying capacity in all directions
413 ball cage option provides increased travel smoothness, lower noise at high speeds, and individual lubricant reservoirs
Carriage does not retain ball bearings when end cap is removed
Removal of end caps can result in loss of ball bearings
High grade accuracy class
Clearance preload

Specifications

Carriage Hole Size:	M12
Carriage Material:	Alloy Steel
Country of Origin:	TW
Height:	51.1 mm
Length:	129 mm
Load Capacity:	58000 N Dynamic/108900 N Static
Maximum Speed:	5 m/s
Rail Size:	45 mm W
Series:	400
Slide Height:	60 mm
Style:	Standard Block
Suitable For Use With:	400 Series Profile Rails
Temperature Rating:	80 deg C
Width:	120 mm
