332020A01F120 WOO

Name: 332020A01F120 WOO
Brand: Molex/Woodhead
SKU: 332020A01F120 WOO
Availability: OutOfStock

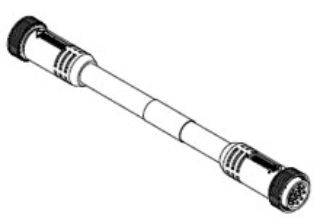

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

332020A01F120

product.name:

332020A01F120 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

C-Size Double Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

Brad® Mini-Change® Woodhead® Cordset, C-Size Double Ended, Series: 130012, Straight Female x Straight Male Connector, 7/8-16 UN-2B Connector, PVC Connector, 16 AWG STOOW Cable, 3.66 m Cable Length, PVC Cable, 12 Pole, Single Keyway, 600 VAC, 5 A, Black/Blue/Green/Orange/Red/White/Yellow Wire Pin, NEMA 6P NEMA Rating

Application

For use to provide connections for 12 and 18 mm proximity sensors, photoelectric sensors, limit switches and hydraulic valves commonly found in industrial applications involving conveyors, packaging equipment, material handling equipment and automated assembly equipment

Standards

CSA File No. LR6837 | UL File No. E46237

Features

Standard Mini-Change® molded corsets have coupling nuts with internal threads
Higher durometer PVC nose
Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
Oil resistant PVC yellow jacket
Gold over nickel plated contacts
Zinc die cast epoxy coated coupling nut

Specifications

Amperage Rating:	5 A
Cable Length:	3.66 m
Cable Material:	PVC
Cable Type:	16 AWG STOOW
Connector Material:	PVC
Connector Size:	7/8-16 UN-2B
Connector Type:	Straight Female x Straight Male
Country of Origin:	MX
Keyway:	Single
NEMA Rating:	NEMA 6P
Number of Poles:	12
Series:	130012
Voltage Rating:	600 VAC
Wire Pin Colors:	Black/Blue/Green/Orange/Red/White/Yellow
