2R6006A20A120 WOO

Name: 2R6006A20A120 WOO
Brand: Molex/Woodhead
SKU: 2R6006A20A120 WOO
Availability: InStock

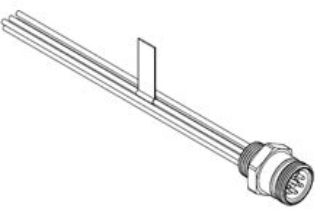

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

2R6006A20A120

product.name:

2R6006A20A120 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

6-Pole B-Size Single Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

Brad® Mini-Change® Woodhead® Receptacle, 6-Pole B-Size Single Ended, Series: 130014, 600 VAC/VDC, 8 A, Straight Male x 16 AWG Lead Slot End, NEMA 6 NEMA Rating, Industrial Grade, Die Cast Zinc, 0.305 m L Dimensions

Application

Commercial and Industrial Light Displays, Float Switches on Commercial Sump Pumps, Fractional Horse Power Motors, Industrial Heaters, Industrial Refrigeration Systems, Limit Switches, Linear Position Transducers, Load Cells, Power Connector to Street Light Accessories, Proximity and Photoelectric Sensors, Pumps, Solar Panels and Solenoid Operated Valves

Standards

CSA File No. LR6837 | UL File No. E152210

Features

Maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
Provides 100 lb minimum cable strain relief
Radiates stress in side loaded conditions
Prevents the entry of water during temporary submersion at a limited depth

Specifications

Amperage Rating:	8 A
Country of Origin:	MX
Dimensions:	0.305 m L
Grade:	Industrial
Material:	Die Cast Zinc
NEMA Rating:	NEMA 6
Series:	130014
Slot End Style:	Straight Male x 16 AWG Lead
Voltage Rating:	600 VAC/VDC
