26W75 WOO

Name: 26W75 WOO
Brand: Molex/Woodhead
SKU: 26W75 WOO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

26W75

product.name:

26W75 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Woodhead®

Type

3-Phase

Description

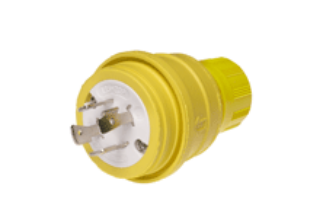

Woodhead® Watertite® Plug, 3-Phase, Series: 130147, 250 VAC, 20 A, 3 Pole, 4 Wires, L15-20 NEMA Rating, NEMA 1/3/4/4X/5/6/6P/12/IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow

Application

For wet location

Standards

CSA LR6837 | NSF/ANSI/3-A 14159-1 | UL E10176

Features

Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seal cord without damaging the cord

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	NEMA 1/3/4/4X/5/6/6P/12/IP67
NEMA Rating:	L15-20
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
