2517 1 11/16 MSG

Name: 2517 1 11/16 MSG
Brand: Martin Sprocket & Gear
SKU: 2517 1 11/16 MSG
Availability: InStock

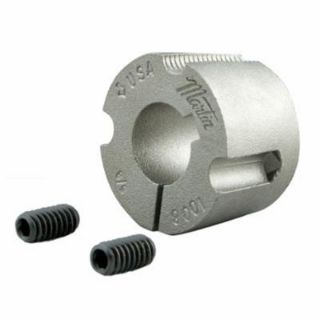

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

2517 1 11/16

product.name:

2517 1 11/16 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 1-11/16 in Bore Dia, 3-3/8 in Barrel Dia, 4-3/8 in Hub Dia, 8 deg Taper, 3-1/4 in Bolt Circle, 2 Bolt Holes, 1/2-13 x 1 in Screw, 11600 in-lb, 1-3/4 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 2517 bushing
TB Bushings are designed for flush mounting and do not have a flange

Specifications

Barrel Diameter:	3-3/8 in
Bolt Circle Diameter:	3-1/4 in
Bore Diameter:	1-11/16 in
Country of Origin:	US
Hub Diameter:	4-3/8 in
Keyway Size:	3/8 x 3/16 in
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1-3/4 in
Screw Size:	1/2-13 x 1 in
Taper:	8 deg
Torque Rating:	11600 in-lb
