23-23-220-8 SHD

Name: 23-23-220-8 SHD
Brand: SolaHD (Emerson)
SKU: 23-23-220-8 SHD
Availability: OutOfStock

23-23-220-8 SHD

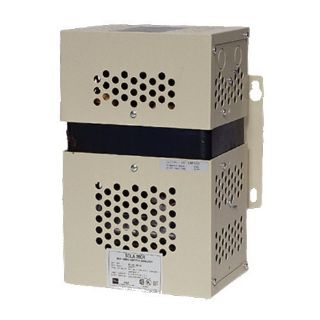

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

23-23-220-8

product.name:

23-23-220-8 SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

CVS Hardwired Series - Constant Voltage Transformers

Description

Features:40 DB (Common Mode/Transverse Mode) Noise Attenuation, Galvanic Isolation, Standard:UL 1012, CSA, Wattage:2000VA, Primary Voltage:120/208/240/480V AC, Secondary Voltage:120/240V AC, Frequency Rating:60HZ,

Application

Industrial Automation and Control Equipment Power PLCs, Broadcast Equipment, Photo Processing Equipment

Standards

UL 1012, CSA, ANSI/IEEE C62.41

Features

Superior voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Acts as step-up/step-down transformer, Galvanic isolation, Noise attenuation 40 dB

Specifications

Amperage Rating:	1000 VA
Country of Origin:	US
Efficiency:	Up to 92% at Full Load PCT
Frequency Rating:	60 Hz
Mounting:	Bracket
Number of Taps:	10
Operating Temperature:	-20 to 50 degrees C
Phase:	1
Primary Voltage:	120/208/240/480 VAC
Regulation:	+/-1 PCT
Secondary Voltage:	120/240 VAC
Size:	17 High x 9 Wide x 7 Deep IN

Resources

MSDS Spec Sheet Warranty
