22314-E1-XL-C3 FAG

Name: 22314-E1-XL-C3 FAG
Brand: INA
SKU: 22314-E1-XL-C3 FAG
Availability: OutOfStock

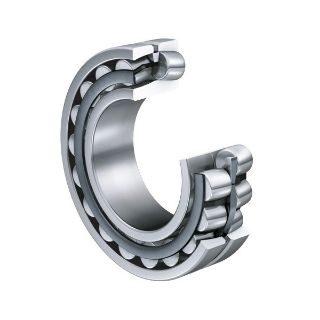

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

22314-E1-XL-C3

product.name:

22314-E1-XL-C3 FAG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FAG

Type

Cylindrical Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 223-E1, 70 mm Bore, 150 mm OD, 2 Rows, 51 mm Width, Open Closure, 390 kN Load, Sheet Steel Cage, 4800 rpm Maximum, -30 to 200 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Two sheet steel cages, surface hardened or coated, guidance on outer ring
X-life design
C3 radial internal clearance
Without central rib on inner ring
390 kN dynamic/390 kN static

Specifications

Bore Diameter:	70 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	390 kN
Maximum Speed:	4800 rpm
Number of Rows:	2
Outside Diameter:	150 mm
Series:	223-E1
Temperature Rating:	-30 to 200 deg C
Width:	51 mm
