210L075 GAT

Name: 210L075 GAT
Brand: Gates
SKU: 210L075 GAT
Availability: InStock

product.productdetails.imagedisclaimer

product.productdetails

products.manufacturer:

Gates

products.manufacturerpartnumber:

210L075

products.availability.cbtinventory

products.availability.vendorinventory

common.loading

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

products.availability:

products.availability.instockwithquantity

products.availability.disclaimer

products.callforprice

product.description

Brand Name

Gates

Alternate Supplier #

92572203

Description

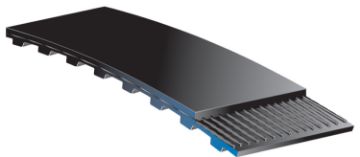

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life. Maintenance-free, clean solution for roller chain drive conversion with no lubrication or retensioning required.

Specifications

Belt Back Side:	Smooth
Belt Height (in):	0.14
Belt Height (mm):	3.6
Belt/Slab:	Belt
Color:	Black
Cord Material:	Fiberglass
Country of Origin:	US
End:	Endless
Fabric Material:	Nylon Teeth
GC Base Product:	PowerGrip® Timing Belts - 3/8" Pitch (.375"/L)
Harmonized Tariff Code:	4010.39.4500
Length Pitch (in):	21
Length Pitch (mm):	533
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+100
Max Temp (°F):	+212
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	56
Pitch (in):	0.375
Pitch (mm):	10
Proposition 65:	NO
Section:	L
Sided:	Single Sided
Sprock Comptab:	PowerGrip GT
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	Trapezoidal Design
Tooth Height (in):	0.075
Tooth Height (mm):	1.91
Width (in):	0.75
Width (mm):	19
