17L050 MSG

Name: 17L050 MSG
Brand: Martin Sprocket & Gear
SKU: 17L050 MSG
Availability: OutOfStock

product.productdetails.imagedisclaimer

product.productdetails

products.manufacturer:

Martin Sprocket & Gear

products.manufacturerpartnumber:

17L050

products.availability.cbtinventory

products.availability.vendorinventory

common.loading

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

products.availability:

products.availability.productleadtime

products.availability.disclaimer

products.callforprice

product.description

Brand Name

Martin

Type

Solid Type DF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

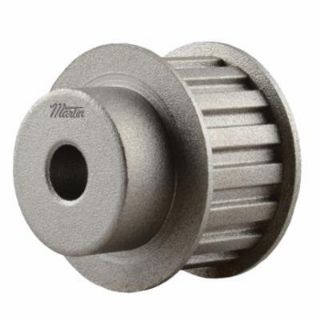

Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 1/2 to 1-1/8 in Bore Dia, 1.999 in Outside Dia, 2.029 in, 17 Grooves, 3/8 in Pitch, 0.562 in Face Width, 2.256 in Flange Dia, 1-1/2 in Hub Dia, 5/8 in Hub Projection, 1-3/8 in Overall Length, For Use With: 1/2 in W Type L Belt, Steel

Specifications

Bore Diameter:	1/2 to 1-1/8 in
Bore Type:	Minimum Plain/Reborable
Country of Origin:	US
Face Width:	0.562 in
Flange Diameter:	2.256 in
Hub Diameter:	1-1/2 in
Hub Projection:	5/8 in
Material:	Steel
Number of Grooves:	17
Outside Diameter:	1.999 in
Overall Length:	1-3/8 in
Pitch:	3/8 in
Pitch Diameter:	2.029 in
Suitable For Use With:	1/2 in W Type L Belt
