170019.60 LEE

Name: 170019.60 LEE
Brand: Leeson Electric
SKU: 170019.60 LEE
Availability: OutOfStock

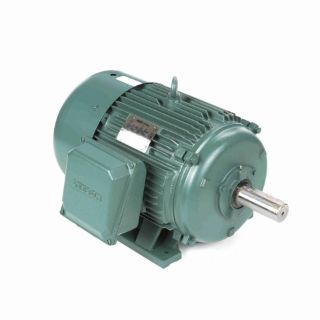

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

170019.60

product.name:

170019.60 LEE

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Features

Premium efficient ratings Inverter-rated; Continuous duty Class F insulation system – 140 frame and higher Class F insulation system – 140 frame and higher Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications Dynamically balanced rotors Torques exceed NEMA performance standards; UL recognized and CSA certified

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	29.53
CE:	Y
Connection Drawing No:	004172.01
Country of Origin:	China
CSA:	Y
Current:	100.0-92.0/46.0
DE Bearing Size:	6312
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.1
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	324
Frame Suffix:	T
Frame Type:	324T
Frequency:	60
HP:	40
Insulation Class:	F
IP Code:	43
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6312
ODE Bearing Type:	Ball
Outline Drawing No:	16954160LE
Phases:	3
Power Factor:	86
Power Rating (HP):	40
Power Rating (kW):	30.0
Resistance Main:	.042
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.125
Shaft Extension (IN):	5.25
Shaft Type:	T
Speed:	1780
Speed Max:	1780
Starting Type:	Wye Start Delta Run Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460

Resources

Spec Sheet
