16220-3 BSF

Name: 16220-3 BSF
Brand: Bussmann
SKU: 16220-3 BSF
Availability: InStock

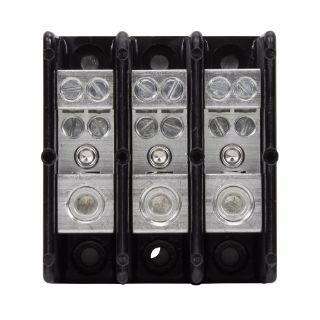

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

16220-3

product.name:

16220-3 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Barrier

Description

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Bussmann Magnum® Power Distribution Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, (1) Screw Primary Connections/Pole, (4) Screw Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 2.7 in L X 2.88 in W X 1.75 in H

Application

Power Distribution Applications, Electrical Assemblies, Panels and OEMs Applications

Standards

CE Certified | CSA 6228-01/53787 | RoHS Compliant | UL File No. E221592/1059 | UL Guide XCFR2

Features

Rated for dual wire port application to increase the possible number of line side and load side connections
Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
Molded thermoplastic base, tin plated aluminum connector
SMD/SMT style mounting

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Dimensions:	2.7 in L x 2.88 in W x 1.75 in H
Finish:	Tin Plated
Material:	Thermoplastic
Number of Poles:	3
Primary Connections/Pole:	(1) Screw
Secondary Connection/Pole:	(4) Screw
Series:	162
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load
