15W47 WOO

Name: 15W47 WOO
Brand: Molex/Woodhead
SKU: 15W47 WOO
Availability: InStock

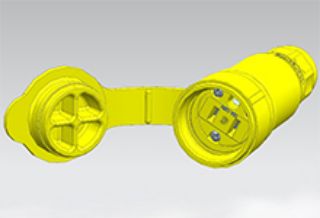

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

15W47

product.name:

15W47 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Woodhead®

Type

Female

Description

Woodhead® Watertite® Extreme Straight Blade Connector, Female, Series: 130146, 125 VAC, 15 A, 2 Pole, 3 Wire, NEMA 5-15, Industrial Grade, IP67/IP69K Enclosure, 0.234 to 0.687 in Diameter Cord, Silicone, Yellow

Standards

UL Listed

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screwdrivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.234 to 0.687 in
Country of Origin:	MX
Enclosure:	IP67/IP69K
Grade:	Industrial
Material:	Silicone
NEMA Rating:	NEMA 5-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Voltage Rating:	125 VAC
