119976.00 LEE

Name: 119976.00 LEE
Brand: Leeson Electric
SKU: 119976.00 LEE
Availability: OutOfStock

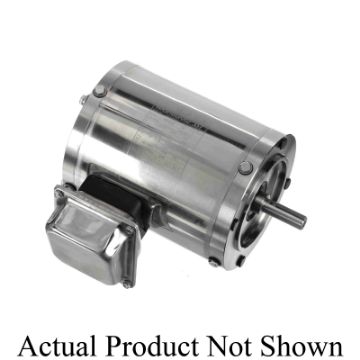

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

119976.00

product.name:

119976.00 LEE

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® Extreme Duck® AC Motor, 4-Pole Continuous Duty, 1 hp, 230/460 VAC, 2.8/1.4 A, 60 Hz Frequency, 3 ph ph, 1750 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 48.04 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 13.22 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Q-Car™ rotor cartridge for quick access
Double sealed ball bearings with high temperature grease
Non-wicking lead wires, 2-piece shaft seal with flinger
Chemical and abrasion resistant lead markers
Conduit box rotates 360 deg on TEFC models
Enhanced encapsulation process and IP69K enclosure protection
Total winding encapsulation using an epoxy resin
Exclusive IRIS® inverter duty insulation system provides extra protection and long life and especially in inverter-driven applications
CSA energy efficiency verification program and report number EEV 78720-1
IP69K enclosure protection color coded leads and full fact nameplate is laser etched on the motor frame

Specifications

Amperage Rating:	2.8/1.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.22 in L
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	48.04 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
