1030C11 MSG

Name: 1030C11 MSG
Brand: Martin Sprocket & Gear
SKU: 1030C11 MSG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

1030C11

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Type C Reboreable

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

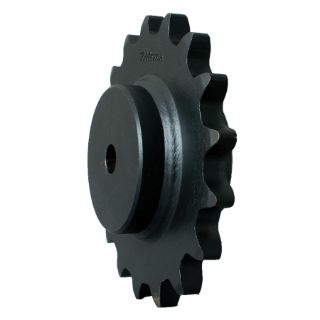

Martin Accu-Torch® Flame Cut Sprocket, Type C Reboreable, 1.5 to 3.313 in Bore, 12.733 in OD, #1030 Chain, 11 Teeth, 3.075 in Pitch, 10.916 in Pitch Diameter, 5-1/2 in Diameter Hub, 4-3/8 in Length Through Bore, Steel

Application

For engineering class and mill chains

Features

Precise machining and processes ensure consistent finish and high quality
Manufactured of high carbon steel

Specifications

Bore Diameter:	1.5 to 3.313 in
Chain Size:	#1030
Hub Diameter:	5-1/2 in
Length Through Bore:	4-3/8 in
Material:	Steel
Number of Teeth:	11
Outside Diameter:	12.733 in
Pitch:	3.075 in
Pitch Diameter:	10.916 in
