1012KRR TKN

Name: 1012KRR TKN
Brand: Timken
SKU: 1012KRR TKN
Availability: OutOfStock

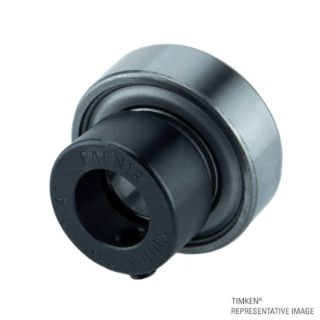

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

1012KRR

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Wide Inner Ring Ball Bearing | 19.06 mm 0.75 in Bore 46.99 mm 1.85 in OD

Features

RR Series bearings are equipped with Shroud-Seals which provide extra effectiveness and protection
The extra wide design provides additional shaft support and extra large grease capacity

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	0.75025
Bore Size (ID) - mm:	19.05635
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	3190
Fillet Radius - Inch:	0.039
Fillet Radius - Millimeter:	0.9906
Inner Ring Width - Inch:	1.34145
Inner Ring Width - Millimeter:	34.07283
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	15742.7839014292
Maximum Operating RPM (Oil):	18366.581218334
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	1.85017
Outer Diameter - mm:	46.994318
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.54885
Outer Ring Width - Millimeter:	13.94079
Overall Width - in:	1.721
Overall Width - mm:	43.7134
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Static Load Rating:	1480
