100Q12H MSG

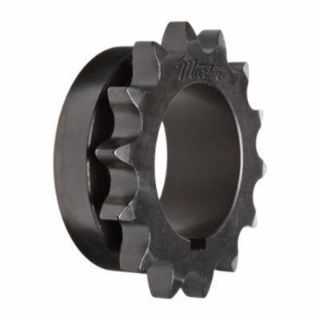

Martin 100Q12H MST® Q1 Bushed Solid Type 4 Split Single Roller Chain Sprocket, 0.75 to 2.688 in Dia Bore, 5.415 in OD, 100 Chain, 12 Teeth, 1-1/4 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 100Q12H
Availability: Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Martin

Type

MST® Q1 Bushed Solid Type 4

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® Q1 Bushed Solid Type 4, 0.75 to 2.688 in Bore Dia, 5.415 in Outside Dia, 100 Chain, 12 Teeth, 1-1/4 in Pitch, 4.83 in, 4-1/8 in Hub Dia, 1/2 in W Keyway, 2-1/2 in Length Through Bore, Type Q1 Split Taper Bushing, Steel

Specifications

Bore Diameter:0.75 to 2.688 in
Bushing Type:Type Q1 Split Taper
Chain Size:100
Country of Origin:US
Hub Diameter:4-1/8 in
Keyway Size:1/2 in W
Length Through Bore:2-1/2 in
Material:Steel
Number of Teeth:12
Outside Diameter:5.415 in
Pitch:1-1/4 in
Pitch Diameter:4.83 in
