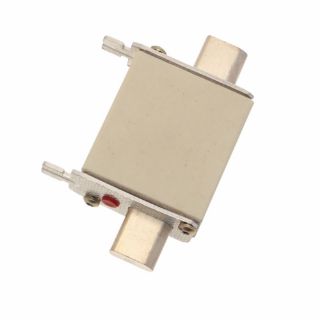

100NHM00B-690 BSF

Name: 100NHM00B-690 BSF
Brand: Bussmann
SKU: 100NHM00B-690 BSF
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

100NHM00B-690

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 51 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Size 00 Low Voltage

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 00 Low Voltage, Series: NHM, 690 V, 100 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, For Use With: Class aM Fuse

Application

Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems

Standards

RoHS Compliant

Features

Combination fuse status indicator

Specifications

Amperage Rating:	100 A
Country of Origin:	IN
Frequency Rating:	45 to 62 Hz
Rated Breaking Capacity:	120 kAIC
Series:	NHM
Suitable For Use With:	Class aM Fuse
Voltage Rating:	690 V
