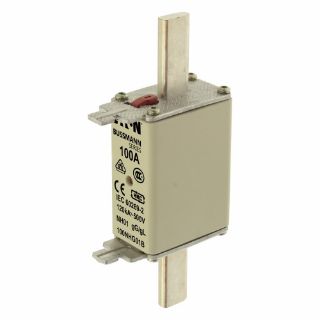

100NHG01B BSF

Name: 100NHG01B BSF
Brand: Bussmann
SKU: 100NHG01B BSF
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

100NHG01B

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Size 01 Dual Indication Square Class gG/gL

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 01 Dual Indication Square Class gG/gL, 500 V, 100 A, 47/63 Hz, Rated Breaking Capacity: 120 kA, Holder Mount, Ceramic, 135 mm L x 30 mm W

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Industrial Applications, Safety and Security Systems

Standards

CCC Certified | CE Certified | DIN 43620 | IEC 60269 | RoHS Compliant | VDE 0636

Features

Voltage conducting metal gripping lugs
Reliable dual indicator system
Low temperature rise
Globally compliant
Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
Cadmium and lead free
120 kA at 500 VAC interrupt rating

Specifications

Amperage Rating:	100 A
Country of Origin:	IN
Dimensions:	135 mm L x 30 mm W
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	120 kA
Series:	NHG
Suitable For Use With:	Class C gG/gL Fuse
Voltage Rating:	500 V
