100HR50 UST

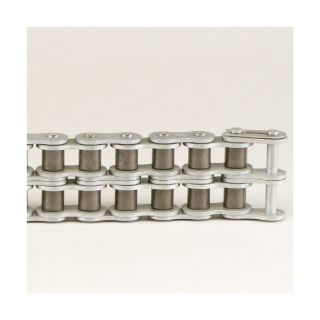

Picture of 100HR50 UST
Actual Product May Vary From Image

Product Details

Manufacturer:
US Tsubaki
Manufacturer part number:
100HR50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Tsubaki®

Description

Heavy Series roller chains differ from the ASME/ANSI standard series in the extra thickness of the link plates and the extra length of the pins. These link plates have the same thickness as the link plates of ASME/ANSI chains having the next larger pitch. The thicker link plates provide greater capacity (approximately 10%) for absorbing shock loads. These chains are suitable in situations where the load is heavy or operating conditions are severe.
Tsubaki® Chain, Series: Heavy, 1-1/4 in Pitch, 3/8 in Pin Dia, 3/4 in Roller Dia, 3/4 in Roller Width, 1.185 in Plate Height, 0.187 in Plate Thickness, 1 Strand, 26460 lb Tensile, 50 ft Overall Length

Standards

ANSI 100

Features

Riveted pin construction

Specifications

Country of Origin:CN
Number of Strands:1
Overall Length:50 ft
Pin Diameter:3/8 in
Pitch:1-1/4 in
Plate Height:1.185 in
Plate Thickness:0.187 in
Roller Diameter:3/4 in
Roller Width:3/4 in
Series:Heavy
Tensile Strength:26460 lb
