10-IDL-BRAK GAT

Name: 10-IDL-BRAK GAT
Brand: Gates
SKU: 10-IDL-BRAK GAT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

10-IDL-BRAK

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Type

Idler Brackets

Alternate Supplier #

77201010

Description

Idlers are used to take-up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.

Features

Idler assembly may consist of: idler sprocket and bracket, flat idler and bracket, standard sheave or sprocket used with an idler bearing and idler bracket. Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets. Lubrication and maintenance are not required.

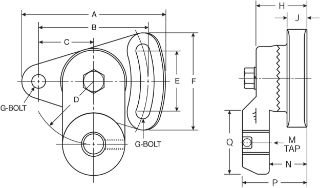

Specifications

A (in):	4.63
A (mm):	117.6
B (in):	3.50
B (mm):	88.9
C (in):	1.75
C (mm):	44.5
Country of Origin:	US
D (in):	2.00
D (mm):	50.8
E (in):	2.06
E (mm):	52.3
F (in):	3.06
F (mm):	77.7
G (in):	.38
G (mm):	9.7
GC Base Product:	6 IDLR BRACKET
H (in):	1.50
H (mm):	38.1
Harmonized Tariff Code:	8483.50.9080
J (in):	.63
J (mm):	16
Material:	Steel
N (in):	1.00
N (mm):	25.4
P (in):	1.88
P (mm):	47.8
Proposition 65:	NO
Q (in):	1.75
Q (mm):	44.5
Thread Size:	3/4-16
Use Bushing:	2012-IDL-BUSH, 2517-IDL-BUSH, 20-IDL-BUSH (SK)
Use Idlr Pul OD:	4.25
Use Spkt Pitch:	8mm
