098002.00 LEE

Name: 098002.00 LEE
Brand: Leeson Electric
SKU: 098002.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

098002.00

product.name:

098002.00 LEE

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

C-Face SCR Rated

Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

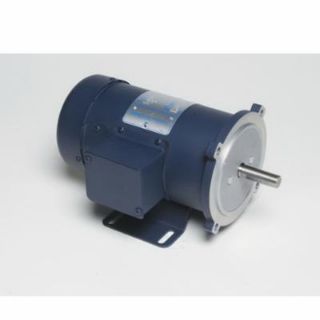

LEESON® DC Motor, C-Face SCR Rated, 30:1 Constant Torque Speed Range Special Features, 1/4 hp Power, 90 VDC, 2.5 A, 1750 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 89 in-lb Torque, 40 deg C, Insulation Class: Class F, Rolled Steel, 10.81 in L x 6.5 in W x 6.32 in H Dimensions

Application

Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment

Standards

CE Certified | CSA Certified | NEMA MG1 | UL Listed

Features

30:1 Constant Torque Speed Range

Specifications

Amperage Rating:	2.5 A
Bearing Type:	Sealed
Country of Origin:	US
Dimensions:	10.81 in L x 6.5 in W x 6.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Insulation Class:	Class F
Material:	Rolled Steel
Power Rating:	1/4 hp
Rotation:	Reversible
Service Factor:	1
Shaft Size:	5/8 in
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	89 in-lb
Voltage Rating:	90 VDC
