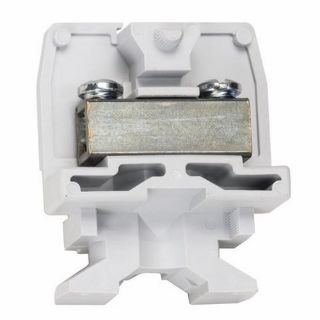

0925 IDE

Name: 0925 IDE
Brand: Ideal Industries
SKU: 0925 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

0925

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Ideal

Type

Medium Duty Terminal Block

Description

Ideal 0925 Medium Duty Terminal Block, Wire Size: 10 - 22 AWG, Spacing: 3/8 IN, Amperage Rating: 30 AMP, Voltage Rating: 600 V, Polyester, Gray, Mounting: Channel Mount (Dovetail Base), Connection: Tubular Clamp, 10-32 Combo Head, Screw Torque: 8 IN-LB, Contact Material: Copper Alloy, Zinc Plated, Steel, Zinc Plated Screw, Flammability: UL94V-0 Rated, For High Temperature

Application

For High Temperature

Features

This family of polyester blocks is ideal for high-temperature applications; The rugged material withstands temperatures up to 302 DEG F (150 DEG C); Three contact styles cover broad wire range - accept single wire or combinations from 22 - 8 AWG solid or stranded; Rated at 15 - 50 AMP per circuit; Flat-base models mount directly to surfaces, dovetail base models mount on standard channel; Only one end section needed per block assembly; Readily identifiable circuits - write directly on matte-surface of block; Sections snap-fit with heavy-duty, intermediate heavy-duty and fuse blocks

Specifications

Amperage Rating:	30 AMP
Color:	Gray
Connection:	Tubular Clamp, 10-32 Combo Head
Country of Origin:	USA
Material:	Polyester
Mounting:	Channel Mount (Dovetail Base)
Spacing:	3/8 IN
Sub Brand:	Ideal
Voltage Rating:	600 V
Wire Size:	10 - 22 AWG

Resources

Spec Sheet
