08118 90010 TKN

Name: 08118 90010 TKN
Brand: Timken
SKU: 08118 90010 TKN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

08118-90010

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

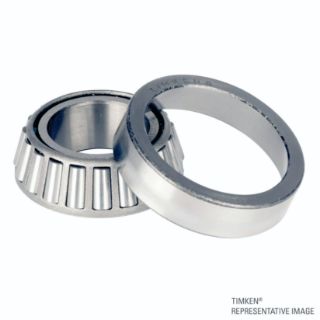

TRB Single Assembly Prec. | Imperial | 30.2 mm 1.2 in Bore | 58.7 mm 2.3 in OD | 14.7 mm 0.6 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90010
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	7130
Inner Race Width (in):	0.5937
Inner Race Width (mm):	15.07998
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	2.3125
Outer Diameter (mm):	58.7375
Outer Diameter Type:	Straight OD
Outer Race Width (in):	0.4219
Outer Race Width (mm):	10.71626
Overall Width (in):	0.5781
Overall Width (mm):	14.68374
Precision class:	Class 0 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	1.1875
Shaft Size (mm):	30.1625
Static Load Rating:	7880
