074PG29023 HWD

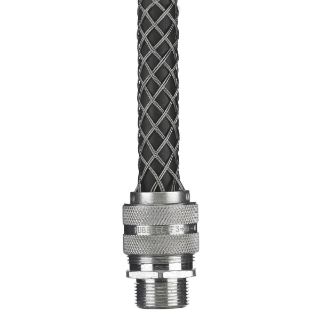

Picture of 074PG29023 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
074PG29023
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Form 4 Standard

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Wiring Device-Kellems Cord Grip, Deluxe Form 4 Standard Straight, PG29, Cable Openings: 3/4 to 7/8 in, Jacketed Cable, MNPT, Aluminum, Metallic, -30 to 225 deg F

Application

For hazardous locations, wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors, machine tools, use in wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | NEC Certified | RoHS Compliant | UL 898D/899D | UL 94 V-2 Flammability Rating | UL 94 HB Flammabilty Rating

Features

  • Helps to prevent cable pull-outs
  • Controls cable arc of bend
  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Straight aluminum connector stainless grip
  • 29 mm threaded hub recommended knockout hole
  • The products are suitable for use in wet locations so long as a listed nylon fitting is used between box and fitting
  • Neoprene bushing is oil and watertight
  • Galvanized steel strand, aluminum nut, neoprene bushing

Specifications

Cable Openings:3/4 to 7/8 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Material:Aluminum
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:PG29
