0744671 FAL

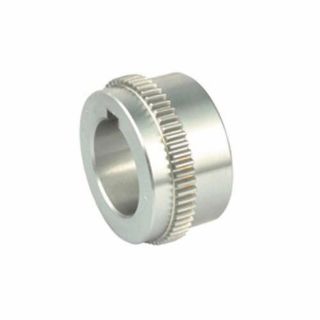

FALK® Lifelign® 0744671 G Series Full Flex Gear Coupling Hub, 1015G Coupling, 2.373 in Dia Bore, 1.94 in Length Through Bore, 3.4 in Dia Hub, Steel
Manufacturer: Rexnord
Manufacturer part number: 0744671
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

FALK®

Type

Full Flex

Description

Stock flex hubs for G series double and single engagement couplings. The Lifelign® flex hubs have teeth that mate with a sleeve to transmit torque and accommodate equipment shaft misalignment.
FALK® Lifelign® Gear Coupling Hub, Full Flex, Series: G Series, 1015G Coupling, 2.373 in Bore Dia, 3.4 in Hub Dia, 1.94 in Hub Length, 5/8 x 5/16 in Keyway, 6500 rpm Maximum, 1.94 in Length Through Bore, Steel

Features

Stock flex hubs

Specifications

Bore Diameter:2.373 in
Coupling Size:1015G
Hub Diameter:3.4 in
Hub Length:1.94 in
Keyway Size:5/8 x 5/16 in
Length Through Bore:1.94 in
Material:Steel
Maximum Speed:6500 rpm
Series:G Series
