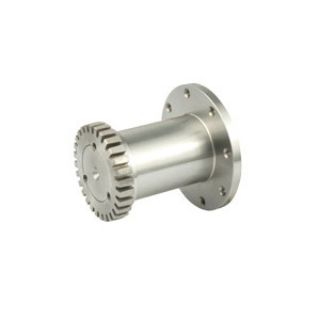

0744085 FAL

FALK® Steelflex® 0744085 Grid Coupling Hub, 1030T Coupling, 1/2 to 1-5/8 in Bore Dia, 1.62 in Shaft Hub/1.88 in T-Hub Length Through Bore, 2.34 in Shaft Hub/1.94 in T-Hub Hub Dia, Steel
Manufacturer: Rexnord
Manufacturer part number: 0744085
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

FALK®

Type

Spacer

Description

FALK® Steelflex® Grid Coupling Hub, 1030T Coupling, 1/2 to 1-5/8 in Bore Dia, 2.34 in Shaft Hub/1.94 in T-Hub Hub Dia, 1.62 in Shaft Hub/1.88 in T-Hub Hub Length, 3600 rpm Maximum, 1.62 in Shaft Hub/1.88 in T-Hub Length Through Bore, Steel

Application

For use with FALK® Steelflex® type T31/T35 spacer grid couplings

Specifications

Bore Diameter:1/2 to 1-5/8 in
Coupling Size:1030T
Hub Diameter:2.34 in Shaft Hub/1.94 in T-Hub
Hub Length:1.62 in Shaft Hub/1.88 in T-Hub
Length Through Bore:1.62 in Shaft Hub/1.88 in T-Hub
Material:Steel
Maximum Speed:3600 rpm
