074093512 HWD

Name: 074093512 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 074093512 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

074093512

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Insulated Liquid Tight Male Straight

Description

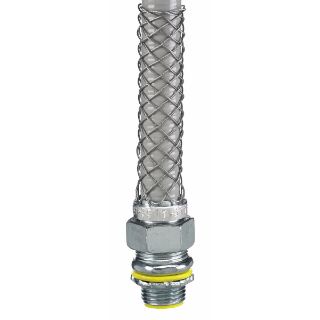

Wiring Device-Kellems Seal-Tite® Conduit Connector, Insulated Liquid Tight Male Straight, 1/2 in, 0.57 in Dia Throat, For Use With: Liquid Tight Conduit, Steel, Metallic, Zinc Plated, 1.5 in L x 1.34 in W

Application

Machine Tools, Motors, Molding Equipment, Transformers, Weaving and Paper Machines, Fans, Lighting, Bakeries, Breweries, Food Processing, Chemical Plants, Dairies, Mines and Hazardous Location Applications

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | UL 898D | UL 899D | UL 94 HB/94 V-2 Flammability Rating

Features

Easy installation
Allows the use of Kellems grips
Extends connector and cable life
-40 to 225 deg F operating temperature
0.859 to 0.906 in recommended knockout hole
Insulated throat
Cap nut connection
Suitable for use in wet locations when a listed sealing ring is used between box and fitting
Mounting between enclosures and conduits
Suitable for use in hazardous locations per class 1 Div 2, class II Div 1 and 2, class III Div 1 and 2

Includes

Mesh Grip

Specifications

Color:	Metallic
Country of Origin:	US
Dimensions:	1.34 in W x 1.5 in H
Finish:	Zinc Plated
Material:	Steel
Suitable For Use With:	Liquid Tight Conduit
Throat Size:	0.57 in
Trade Size:	1/2 in
