07098-90114 TKN

Name: 07098-90114 TKN
Brand: Timken
SKU: 07098-90114 TKN
Availability: OutOfStock

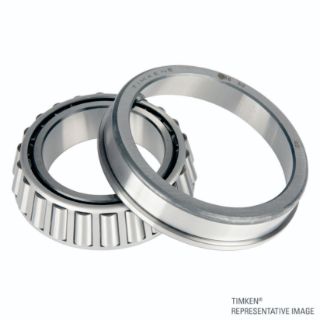

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

07098-90114

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Single Assembly Prec. | Imperial | 25 mm 1 in Bore | 50 mm 2 in OD | 6.7 mm 0.3 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90114
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	6540
Flange Outside Diameter (in):	0.1094
Flange Outside Diameter (mm):	2.77876
Flange Thickness (in):	0.1094
Flange Thickness (mm):	2.77876
Inner Race Width (in):	0.5614
Inner Race Width (mm):	14.25956
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	1.9687
Outer Diameter (mm):	50.00498
Outer Diameter Type:	Straight OD
Outer Race Width (in):	0.375
Outer Race Width (mm):	9.525
Overall Width (in):	0.2657
Overall Width (mm):	6.74878
Precision class:	Class 0 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	0.9835
Shaft Size (mm):	24.9809
Static Load Rating:	6650
