0315005.VXP LIT

Name: 0315005.VXP LIT
Brand: Littelfuse
SKU: 0315005.VXP LIT
Availability: OutOfStock

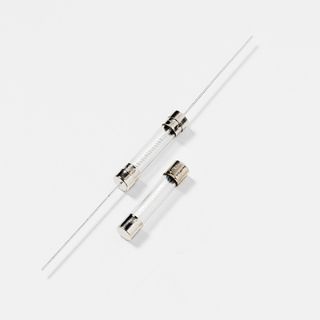

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

315005P

product.name:

0315005.VXP LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Type 3AG

Description

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost effective circuit protection. The fuse catalog number with the suffix ID in instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG slow-blow fuse design.

Littelfuse® POWR-GARD® Slo-Blo® Cartridge Fuse, Type 3AG, Series: 315, Indicating, 5 A, 250 VAC, 10 kA Interrupt, 4 hr, 1 hr, 5 to 30 s Response, Axial Lead Terminal, Cartridge Body, Glass, 0.275 in Dia x 1.275 in L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

Standards

UL 248-14 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Slow blow
4 hrs maximum at 100%, 1 hrs maximum at 135%, 5 to 30 sec at 200% opening time

Specifications

Amperage Rating:	5 A
Body Size:	0.275 in Dia x 1.275 in L
Body Type:	Cartridge
Country of Origin:	CA
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	10 kA
Material:	Glass
Response Time:	4 hr, 1 hr, 5 to 30 s
Series:	315
Terminal Type:	Axial Lead
Voltage Rating:	250 VAC
