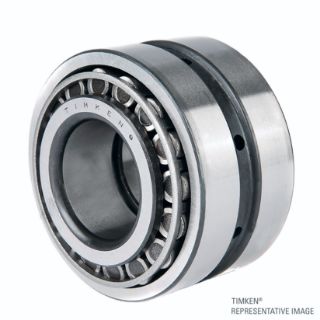

02877-90048 TKN

Name: 02877-90048 TKN
Brand: Timken
SKU: 02877-90048 TKN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

02877-90048

product.name:

02877-90048 TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Double Cup Assembly | Imperial | 76.2 mm 3 in OD | 47.6 mm 1.9 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90048
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	25700
Inner Race Width (in):	1.875
Inner Race Width (mm):	47.625
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	3
Outer Diameter (mm):	76.2
Outer Diameter Type:	Straight OD
Outer Race Width (in):	1.5
Outer Race Width (mm):	38.1
Overall Width (in):	1.875
Overall Width (mm):	47.625
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Double
Static Load Rating:	33600
