0215015.MXP LIT

Name: 0215015.MXP LIT
Brand: Littelfuse
SKU: 0215015.MXP LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

0215015.MXP

product.name:

0215015.MXP LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Time Lag

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.

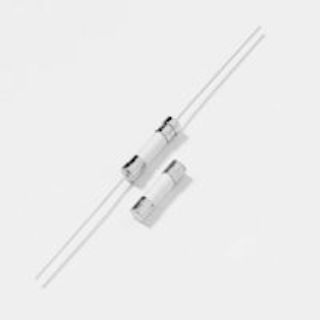

Littelfuse® POWR-GARD® Cartridge Fuse, Time Lag, Series: 215, Non-Indicating, 15 A, 250 VAC, 1.5 kA Interrupt, 30 min, 0.75 to 80 s, 0.15 to 5 s, 0.1 to 150 s Response, Axial Lead Terminal, Holder Mounting, Cartridge Body, Ceramic, 5.2 mm Dia x 20 mm L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

Standards

IEC 60127-2 | UL Listed | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Designed to international (IEC) standards for use globally
High breaking capacity
Lead free
Nickel-plated brass cap, tin plated copper leads
-55 to 125 deg C operating temperature
30 min minimum at 150%, 30 min maximum at 210%, 0.75 to 80 sec at 275%, 0.15 to 5 sec at 400%, 0.1 to 150 sec at 1000% opening time
Meets the IEC 60127-2, sheet 5 specification for Time-Lag fuses
1.5 kA at 250 VAC interrupt rating

Specifications

Amperage Rating:	15 A
Body Size:	5.2 mm Dia x 20 mm L
Body Type:	Cartridge
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	1.5 kA
Material:	Ceramic
Mounting Type:	Holder
Response Time:	30 min, 0.75 to 80 s, 0.15 to 5 s, 0.1 to 150 s
Series:	215
Terminal Type:	Axial Lead
Voltage Rating:	250 VAC
