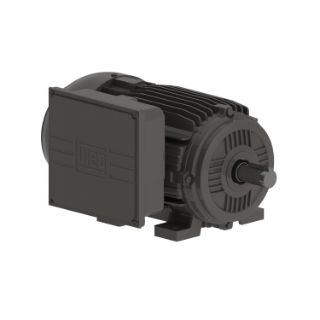

00518ES1E184T WEG

Name: 00518ES1E184T WEG
Brand: WEG
SKU: 00518ES1E184T WEG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00518ES1E184T

product.name:

00518ES1E184T WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Motion Industries - 03547208

Description

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 208/230/460 VAC, 22.5 to 21.4/10.7 A, 60 Hz Frequency, 1 ph ph, 1730 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 15.0 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 17.05 in L Dimensions

Application

General Purpose Applications

Features

V-ring seals
NPT threaded terminal box

Specifications

Amperage Rating:	22.5 to 21.4/10.7 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	17.05 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	1-1/8 in Dia x 2-3/4 in L
Speed:	1730 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	15.0 ft-lb
Voltage Rating:	208/230/460 VAC
