Home / 00318ET3E182TC-W22 WEG

00318ET3E182TC-W22 WEG

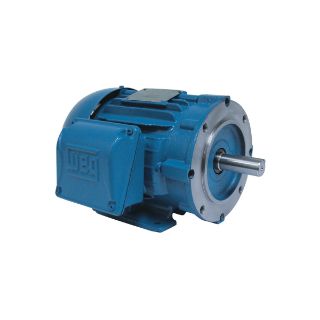

Picture of 00318ET3E182TC-W22 WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
00318ET3E182TC-W22
product.name:
00318ET3E182TC-W22 WEG
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101389063
Motion Industries - 04516793

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 8.65 to 7.82/3.91 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182/4TC Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 8.83 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 15.86 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

  • Regreasable bearings
  • Gasketed conduit box
  • All cast iron construction, including terminal box and fan cover
  • IP55 rating
  • Corrosion proof drains

Specifications

Amperage Rating:8.65 to 7.82/3.91 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Constant Torque Speed Range:20:1
Dimensions:15.86 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:182/4TC
Frequency Rating:60 Hz
Horsepower:3 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:C-Face Footed
Number of Speeds:1
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:1-1/8 in Dia x 2-3/4 in L
Speed:1760 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:8.83 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
