00312ET3E213T-W22 WEG

Name: 00312ET3E213T-W22 WEG
Brand: WEG
SKU: 00312ET3E213T-W22 WEG
Availability: OutOfStock

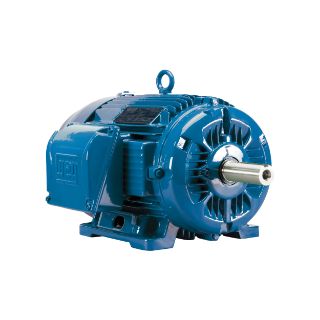

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00312ET3E213T-W22

product.name:

00312ET3E213T-W22 WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101458068
Motion Industries - 04516792

Description

With cast iron frame, flexible mounting, solid feet and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 9.76 to 8.83/4.41 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, 1-3/8 in Dia x 3-3/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 13.2 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 19.517 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Regreasable bearings
Gasketed conduit box
All cast iron construction, including terminal box and fan cover
IP55 rating
Corrosion proof drains

Specifications

Amperage Rating:	9.76 to 8.83/4.41 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	19.517 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213/5T
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	1-3/8 in Dia x 3-3/8 in L
Speed:	1175 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	13.2 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
