00212XT3H184T WEG

Name: 00212XT3H184T WEG
Brand: WEG
SKU: 00212XT3H184T WEG
Availability: OutOfStock

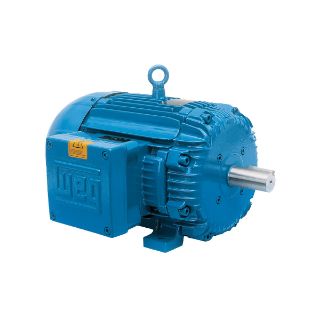

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00212XT3H184T

product.name:

00212XT3H184T WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101372391
Motion Industries - 04868752

Description

W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/zone 1. All ratings meet NEMA Premium® efficiency. Motors are certified for VFD service.

WEG AC Motor, Continuous-Duty, Explosion Proof AC Motors Special Features, 2 hp, 575 VAC, 2.5 A, 60 Hz Frequency, 3 ph ph, 1165 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 8.89 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 15.862 in L Dimensions

Standards

CSA LR50962 | NEMA PremiumÂ® | UL E87848

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	2.5 A
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	15.862 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184T
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	1165 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	8.89 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	575 VAC
