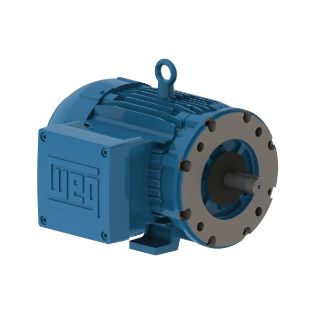

00158XT3E145TC WEG

Name: 00158XT3E145TC WEG
Brand: WEG
SKU: 00158XT3E145TC WEG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00158XT3E145TC

product.name:

00158XT3E145TC WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101370063
Motion Industries - 04788242

Description

W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/zone 1. All ratings meet NEMA Premium® efficiency. Motors are certified for VFD service.

WEG AC Motor, Continuous-Duty, Explosion Proof AC Motors Special Features, 1.5 hp, 208/230/460 VAC, 4.53 to 4.1/2.05 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.42 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 13.752 in L Dimensions

Standards

CSA LR50962 | NEMA PremiumÂ® | UL E87848

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	4.53 to 4.1/2.05 A
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	13.752 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	1760 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	4.42 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
