00118OT3E143TC-S WEG

Name: 00118OT3E143TC-S WEG
Brand: WEG
SKU: 00118OT3E143TC-S WEG
Availability: OutOfStock

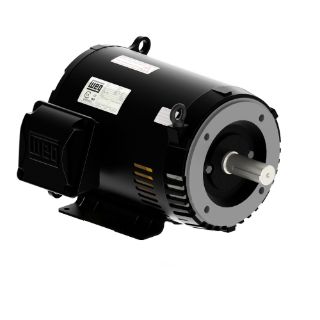

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00118OT3E143TC-S

product.name:

00118OT3E143TC-S WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110950770
Motion Industries - 06142761

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and NEMA Premium® efficiency, these versatile motors provide torque and durability for several applications.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 1 hp, 208/230/460 VAC, 3.34 to 3.02/1.51 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 143-5TC Frame, 7/8 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 2.94 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 11.181 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	3.34 to 3.02/1.51 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	11.181 in L
Enclosure Type:	Open Drip-Proof
Frame:	143-5TC
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	7/8 in Dia x 2-1/4 in L
Speed:	1760 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	2.94 ft-lb
Voltage Rating:	208/230/460 VAC
