00118ET3E56C-S WEG

Name: 00118ET3E56C-S WEG
Brand: WEG
SKU: 00118ET3E56C-S WEG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00118ET3E56C-S

product.name:

00118ET3E56C-S WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112705108
Motion Industries - 06976090

Description

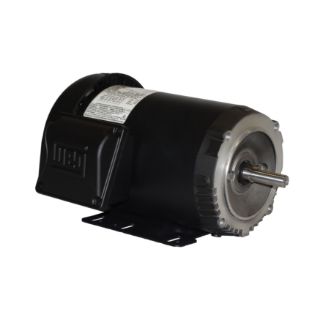

WEG AC Motor, General Purpose AC Motors Application, 1 hp, 230/460 VAC, 1.5 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia x 1-7/8 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 2.94 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 13.504 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	1.5 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	13.504 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	5/8 in Dia x 1-7/8 in L
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	2.94 ft-lb
Voltage Rating:	230/460 VAC
